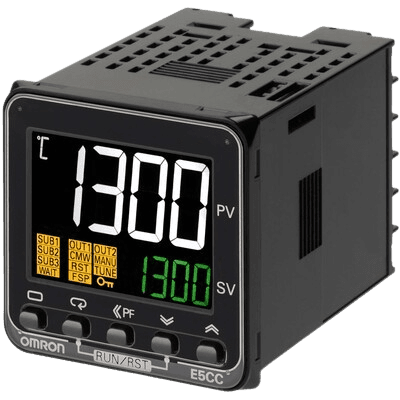

E5CC-RX2ASM-802

Digital temperature controller / meter with 2 aux. outputs + 1-channel heater burnout detection
1/16 DIN (48x48mm)
100-240Vac supply version
OMRON (E5CC-800 series)
RS-485 communication
Screw connections

1 x analog input (Thermocouple types K; J; T; E; L; U; N; R; S; B; W; or PL II / RTD Pt100; JPt100 / IR temp. sens. / 4-20mA; 0-20mA / 1-5Vdc; 0-5Vdc; 0-10Vdc) (Main process input)
1 x analog input (Heater 50A AC C.T. input) (Heater Burnout detection)
1 x digital output (SPST-NO rly. contact; 250Vac/3A resistive load) (control output 1)
2 x digital outputs (SPST-NO rly. contacts; 250Vac/3A resistive load) (aux. outputs)

2 rows x 4-digits (negative transmissive 11-segment LCD with backlight)
15.2mm digits height (PV; Present value; white backlight)
7.1mm digits height (SV; Setpoint; green backlight)

Supply voltage 100Vac-240Vac (110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac) (50/60Hz)
Flush mounting on door
IP66
Equivalent to E5CCRX2ASM802

Main function: Temperature controller (Digital)
Product series / family name: E5CC-800 series
Functions:
Digital temperature controller / meter
ON/OFF control or 2-PID control with auto-tuning
Manual output
Heating/cooling control
Loop burnout alarm
SP ramp
Other alarm functions
Heater burnout (HB) alarm (including SSR failure (HS) alarm)
40% AT
100% AT
MV limiter
Input digital filter
Self-tuning
PV input shift
Run/stop
Protection functions
Temperature status display
Moving average of input value

Design: 2 aux. outputs
Heater burnout detection: 1-channel
Supply version: 100-240Vac

Supply voltage (AC): 100Vac-240Vac (110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac) (50/60Hz)
Frequency: 50ms sampling period (20Hz)

Display:
2 rows x 4-digits (negative transmissive 11-segment LCD with backlight)
15.2mm digits height (PV; Present value; white backlight)
7.1mm digits height (SV; Setpoint; green backlight)

Connection type: Screw connections
Communication protocol: RS-485
Mounting mode: Flush mounting on door

Digital outputs:
1 x digital output (SPST-NO rly. contact; 250Vac/3A resistive load) (control output 1)
2 x digital outputs (SPST-NO rly. contacts; 250Vac/3A resistive load) (aux. outputs)

Analog inputs:
1 x analog input (Thermocouple types K; J; T; E; L; U; N; R; S; B; W; or PL II / RTD Pt100; JPt100 / IR temp. sens. / 4-20mA; 0-20mA / 1-5Vdc; 0-5Vdc; 0-10Vdc) (Main process input)
1 x analog input (Heater 50A AC C.T. input) (Heater Burnout detection)

Measurement accuracy:
+/-0.3% of indication value or +/-1°C whichever is the greater (thermocouple input)
+/-0.2% of indication value or +/-0.8°C whichever is the greater (Platinum RTD input)
+/-0.2% F.S. +/-1 digit max. analog input
+/-5% F.S. +/-1 digit max. CT input (Heater Burnout Detection)

Degree of protection: IP66

Dimensions: 1/16 DIN (48x48mm)
Net Height (mm): 48 mm
Net Width (mm): 48 mm
Net Depth (mm): 73.1 mm
Door cut-out height: 44.8 mm
Door cut-out width: 44.8 mm

Ambient air temperature for operation: -10...+55 °C
Ambient air temperature for storage: -25...+65 °C

Order code / Manufacturer SKU:
E5CC-RX2ASM-802
E5CCRX2ASM802

EAN code: 4548583318427

Compliant with standard(s):
UL61010-1
Korean Radio Waves Act (Act 10564)
CSA C22.2 No. 61010-1
IEC61010-1
EN61326-1
EN55011 Group1 class A
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-6
EN61000-4-5
EN61000-4-11
ICC
CE marking
Lloyd standards

Location of origin: China
Embedding depth: 60 mm
Degree of pollution: 2

Benefits:
Large white pv display that's easier to read. Easy to use from model selection to setup and operation.

• The white PV display with a height of 15.2 mm improves visibility.
• High-speed sampling at 50 ms.
• Select from models with screw terminal blocks models with Push-In Plus terminal blocks for reduced wiring work and Plug-in Models that can be removed from the terminal block.
• Short body with depth of only 60 mm. (Screw Terminal Blocks)
• Easy connections to a PLC with programless communications. Use component communications to link Temperature Controllers to each other.
