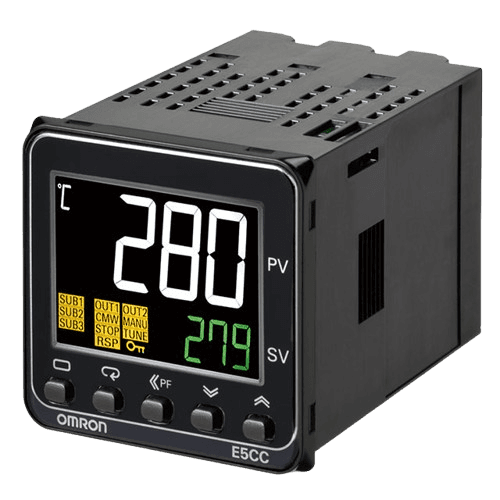

E5CC-QX2ASM-802

**Digital temperature controller / meter with 2 aux. outputs + 1-channel heater burnout detection**
1/16 DIN (48x48mm)
100-240Vac supply version
OMRON (E5CC-800 series)
RS-485 communication
Screw connections

1 x analog input (Thermocouple types K; J; T; E; L; U; N; R; S; B; W; or PL II / RTD Pt100; JPt100 / IR temp. sens. / 4-20mA; 0-20mA / 1-5Vdc; 0-5Vdc; 0-10Vdc) (Main process input)
1 x analog input (Heater 50A AC C.T. input) (Heater Burnout detection)
1 x digital output (S.S.R. voltage driver; 12Vdc; PNP) (control output 1)
2 x digital outputs (SPST-NO rly. contacts; 250Vac/3A resistive load) (aux. outputs)

2 rows x 4-digits (negative transmissive 11-segment LCD with backlight)
15.2mm digits height (PV; Present value; white backlight)
7.1mm digits height (SV; Setpoint; green backlight)

Supply voltage 100Vac-240Vac (110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac) (50/60Hz)
Flush mounting on door
IP66
Equivalent to E5CCQX2ASM802

**Main function:** Temperature controller (Digital)
**Product series / family name:** E5CC-800 series
**Functions:** Digital temperature controller / meter

ON/OFF control or 2-PID control with auto-tuning
Manual output
Heating/cooling control
Loop burnout alarm
SP ramp
Other alarm functions
Heater burnout (HB) alarm (including SSR failure (HS) alarm)
40% AT
100% AT
MV limiter
Input digital filter
Self-tuning
PV input shift
Run/stop
Protection functions
Temperature status display
Moving average of input value

**Design:** 2 aux. outputs
**Heater burnout detection:** 1-channel
**Supply version:** 100-240Vac

**Supply voltage (AC):** 100Vac-240Vac (110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac) (50/60Hz)
**Frequency:** 50ms sampling period (20Hz)

**Display:**
2 rows x 4-digits (negative transmissive 11-segment LCD with backlight)
15.2mm digits height (PV; Present value; white backlight)
7.1mm digits height (SV; Setpoint; green backlight)

**Connection type:** Screw connections
**Communication protocol:** RS-485
**Mounting mode:** Flush mounting on door

**Digital outputs:**
1 x digital output (S.S.R. voltage driver; 12Vdc; PNP) (control output 1)
2 x digital outputs (SPST-NO rly. contacts; 250Vac/3A resistive load) (aux. outputs)

**Analog inputs:**
1 x analog input (Thermocouple types K; J; T; E; L; U; N; R; S; B; W; or PL II / RTD Pt100; JPt100 / IR temp. sens. / 4-20mA; 0-20mA / 1-5Vdc; 0-5Vdc; 0-10Vdc) (Main process input)
1 x analog input (Heater 50A AC C.T. input) (Heater Burnout detection)

**Measurement accuracy:**
+/-0.3% of indication value or +/-1°C whichever is the greater (thermocouple input)
+/-0.2% of indication value or +/-0.8°C whichever is the greater (Platinum RTD input)
+/-0.2% F.S. +/-1 digit max. analog input
+/-5% F.S. +/-1 digit max. CT input (Heater Burnout Detection)

**Degree of protection:** IP66

**Dimensions:** 1/16 DIN (48x48mm)
**Net Height (mm):** 48 mm
**Net Width (mm):** 48 mm
**Net Depth (mm):** 73.1 mm
**Door cut-out height:** 44.8 mm
**Door cut-out width:** 44.8 mm

**Ambient air temperature for operation:** -10...+55 °C
**Ambient air temperature for storage:** -25...+65 °C

**Order code / Manufacturer SKU:**
E5CC-QX2ASM-802
E5CCQX2ASM802

**EAN code:** 4548583318441

**Compliant with standard(s):**
UL61010-1
Korean Radio Waves Act (Act 10564)
CSA C22.2 No. 61010-1
IEC61010-1
EN61326-1
EN55011 Group1 class A
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-6
EN61000-4-5
EN61000-4-11
ICC
CE marking
Lloyd standards

**Location of origin:** China
**Embedding depth:** 60 mm
**Degree of pollution:** 2

**Benefits:**
Large white PV display that's easier to read. Easy to use from model selection to setup and operation.
- The white PV display with a height of 15.2 mm improves visibility.
- High-speed sampling at 50 ms.
- Select from models with screw terminal blocks, models with Push-In Plus terminal blocks for reduced wiring work, and Plug-in Models that can be removed from the terminal block.
- Short body with depth of only 60 mm. (Screw Terminal Blocks)
- Easy connections to a PLC with programless communications. Use component communications to link Temperature Controllers to each other.
