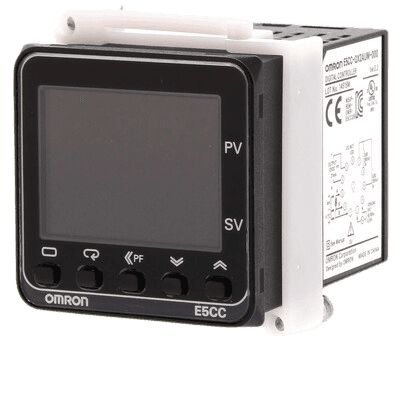

E5CC-CX2AUM-000

Digital temperature controller / meter with 2 aux. outputs
1/16 DIN (48x48mm)
100-240Vac supply version
OMRON (E5CC-U series)

1 x analog input (Thermocouple types K; J; T; E; L; U; N; R; S; B; W; or PL II / RTD Pt100; JPt100 / IR temp. sens. / 4-20mA; 0-20mA / 1-5Vdc; 0-5Vdc; 0-10Vdc) (Main process input)
1 x analog output (Linear; 4-20mA; 0-20mA DC) (control output 1)
2 x digital outputs (SPST-NO rly. contacts; 250Vac/3A resistive load) (aux. outputs)

2 rows x 4-digits (negative transmissive 11-segment LCD with backlight)
15.2mm digits height (PV; Present value; white backlight)
7.1mm digits height (SV; Setpoint; green backlight)

Supply voltage 100Vac-240Vac (110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac) (50/60Hz)
Plug-in mounting on 11-pin round sckt.
IP50

Main function: Temperature controller (Digital)
Product series / family name: E5CC-U series
Functions:
Digital temperature controller / meter
ON/OFF control or 2-PID control with auto-tuning
Manual output
Heating/cooling control
Loop burnout alarm
SP ramp
Other alarm functions
Heater burnout (HB) alarm (including SSR failure (HS) alarm)
40% AT
100% AT
MV limiter
Input digital filter
Self-tuning
Robust tuning
PV input shift
Run/stop
Protection functions
Extraction of square root
MV change rate limit
Logic operations
Temperature status display
Simple programming
Moving average of input value and display brightness setting

Design: 2 aux. outputs
Supply version: 100-240Vac

Supply voltage (AC): 100Vac-240Vac (110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac) (50/60Hz)
Frequency: 50ms sampling period (20Hz)

Display:
2 rows x 4-digits (negative transmissive 11-segment LCD with backlight)
15.2mm digits height (PV; Present value; white backlight)
7.1mm digits height (SV; Setpoint; green backlight)

Mounting mode: Plug-in mounting on 11-pin round sckt.

Digital outputs:
2 x digital outputs (SPST-NO rly. contacts; 250Vac/3A resistive load) (aux. outputs)

Analog inputs:
1 x analog input (Thermocouple types K; J; T; E; L; U; N; R; S; B; W; or PL II / RTD Pt100; JPt100 / IR temp. sens. / 4-20mA; 0-20mA / 1-5Vdc; 0-5Vdc; 0-10Vdc) (Main process input)

Analog outputs:
1 x analog output (Linear; 4-20mA; 0-20mA DC) (control output 1)

Measurement accuracy:
+/-1% of indication value or +/-2°C (thermocouple)
+/-0.2% of indication value or +/-0.8°C whichever is the greater (Platinum RTD input)
+/-0.2% F.S. +/-1 digit max. analog input

Degree of protection: IP50

Dimensions: 1/16 DIN (48x48mm)
Net Height (mm): 48 mm
Net Width (mm): 48 mm
Net Depth (mm): 76.8 mm
Door cut-out height: 44.8 mm
Door cut-out width: 44.8 mm

Ambient air temperature for operation: -10...+55 °C
Ambient air temperature for storage: -25...+65 °C

Order code / Manufacturer SKU:
E5CC-CX2AUM-000
E5CCCX2AUM000

EAN code: 4548583466739

Compliant with standard(s):
UL61010-1
CSA C22.2 No. 61010-1
IEC61010-1
CE marking
EN55011 Group1 class A
EN61326-1
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-6
EN61000-4-5
EN61000-4-11

Location of origin: China
Embedding depth: 58.6 mm
Degree of pollution: 2

Benefits:
Large white PV display that's easier to read. Easy to use from model selection to setup and operation.

• The white PV display with a height of 15.2 mm improves visibility.
• High-speed sampling at 50 ms.
• Select from models with screw terminal blocks, models with Push-In Plus terminal blocks for reduced wiring work, and Plug-in Models that can be removed from the terminal block.
• Short body with depth of only 60 mm. (Screw Terminal Blocks)
• Easy connections to a PLC with programless communications. Use component communications to link Temperature Controllers to each other.
• Set up the Controller without wiring the power supply by connecting to the computer with a Communications Conversion Cable (sold separately). Setup is easy with the CX-Thermo (sold separately).
