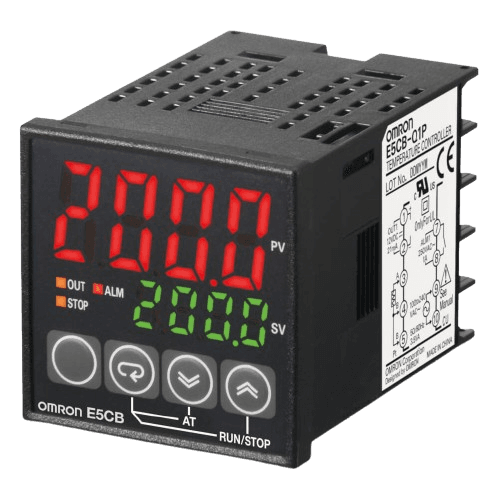

E5CB-Q1TC

The E5CB-Q1TC is a compact LITE digital temperature controller from the E5CB Series, engineered for applications that require precise temperature control in a small panel footprint. With its 1/16 DIN (48 × 48 mm) size, this controller is ideal for space-constrained control panels and compact machinery.

Designed for ON/OFF or PID control, the E5CB-Q1TC supports thermocouple inputs across a wide temperature range, making it suitable for diverse heating processes. The 12 VDC pulsed voltage output is optimized for driving solid-state relays (SSR), ensuring reliable and silent switching. A built-in alarm relay output enhances process safety by enabling alerts and interlocks.

Powered by a wide-range 100–240 VAC supply, this controller offers simple installation and dependable operation in industrial environments. The E5CB-Q1TC is commonly used in heaters, ovens, packaging equipment, laboratory devices, and compact industrial machines where accuracy and space efficiency are critical.

---

Specifications

• Brand: Omron
• Model / SKU: E5CB-Q1TC
• Category: Temperature Controllers
• Series: E5CB Series
• Controller Type: LITE digital temperature controller
• Controller Size: 1/16 DIN (48 × 48 mm)
• Control Method: ON/OFF control, PID control
• Number of Control Loops: 1
• Temperature Input Type: Thermocouple (J, K, R, S, T)
• Temperature Range: -200 to 1700 °C
• Control Output: 12 VDC pulsed voltage output
• Alarm Outputs: 1 relay output
• Event Inputs: 0
• Power Supply: 100–240 VAC
• Terminal Type: Screw terminals
• Applications: Compact heaters, ovens, laboratory equipment, packaging machines, small automation panels

Why Choose Omron E5CB-Q1TC?

• Compact 1/16 DIN size for space-saving installations
• Supports both ON/OFF and PID temperature control
• Wide thermocouple compatibility and temperature range
• SSR-ready voltage pulse output for reliable switching
• Trusted Omron performance for compact industrial applications
